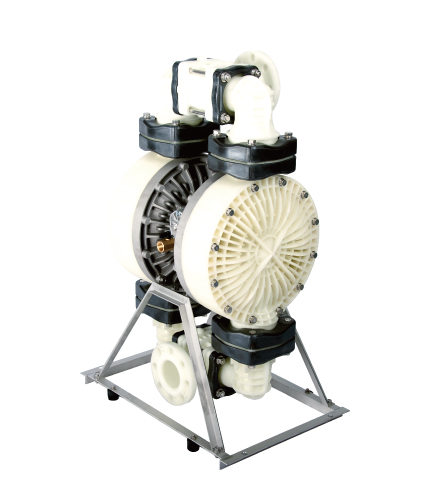

D800

D800G

D800G

PUMP OPERATION MANUAL

SERVICE BOOK

Connection Type		Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)
Rc	Flange	D800G□J (Glass Filled PP)	D800GCJ 1P00239MP	D800GNJ 1P00240MP	D800GEJ 1P00241MP	D800GVJ 1P00242MP	D800GTJ 1P00243MP	D800GHJ 1P00244MP	D800GSJ 1P00245MP
NPT	Flange	D800G□A (Glass Filled PP)	D800GCA 1P00239MN	D800GNA 1P00240MN	D800GEA 1P00241MN	D800GVA 1P00242MN	D800GTA 1P00243MN	D800GHA 1P00244MN	D800GSA 1P00245MN

DIMENSIONAL DRAWINGS

READ ME FIRST

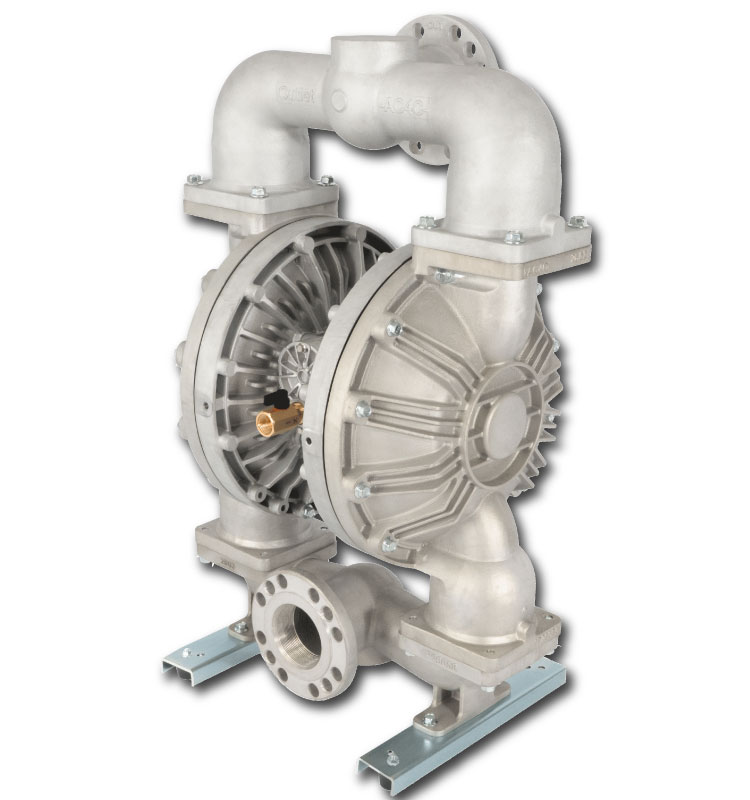

D800A/S

PUMP OPERATION MANUAL

SERVICE BOOK

Connection Type		Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)
Rc	Threaded flange	D800A□J (AL)	D800ACJ 1P00323MP	D800ANJ 1P00324MP	D800AEJ 1P00325MP	D800AVJ 1P00326MP	D800ATJ 1P00327MP	D800AHJ 1P00328MP	D800ASJ 1P00329MP
Rc	Threaded flange	D800S□J (SUS)	D800SCJ 1P00330MP	D800SNJ 1P00331MP	D800SEJ 1P00332MP	D800SVJ 1P00333MP	D800STJ 1P00334MP	D800SHJ 1P00335MP	D800SSJ 1P00336MP
NPT	Threaded flange	D800A□A (AL)	D800ACA 1P00323MN	D800ANA 1P00324MN	D800AEA 1P00325MN	D800AVA 1P00326MN	D800ATA 1P00327MN	D800AHA 1P00328MN	D800ASA 1P00329MN
NPT	Threaded flange	D800S□A (SUS)	D800SCA 1P00330MN	D800SNA 1P00331MN	D800SEA 1P00332MN	D800SVA 1P00333MN	D800STA 1P00334MN	D800SHA 1P00335MN	D800SSA 1P00336MN

DIMENSIONAL DRAWINGS

READ ME FIRST

D800G-M

PUMP OPERATION MANUAL

SERVICE BOOK

Connection Type		Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)
Rc	Flange	D800G□J-M (Glass Filled PP)	D800GCJ-M 1P00029MP	D800GNJ-M 1P00030MP	D800GEJ-M 1P00031MP	D800GVJ-M 1P00032MP	D800GTJ-M 1P00033MP	D800GHJ-M 1P00034MP	D800GSJ-M 1P00035MP
NPT	Flange	D800G□A-M (Glass Filled PP)	D800GCA-M 1P00029MN	D800GNA-M 1P00030MN	D800GEA-M 1P00031MN	D800GVA-M 1P00032MN	D800GTA-M 1P00033MN	D800GHA-M 1P00034MN	D800GSA-M 1P00035MN

DIMENSIONAL DRAWINGS

READ ME FIRST

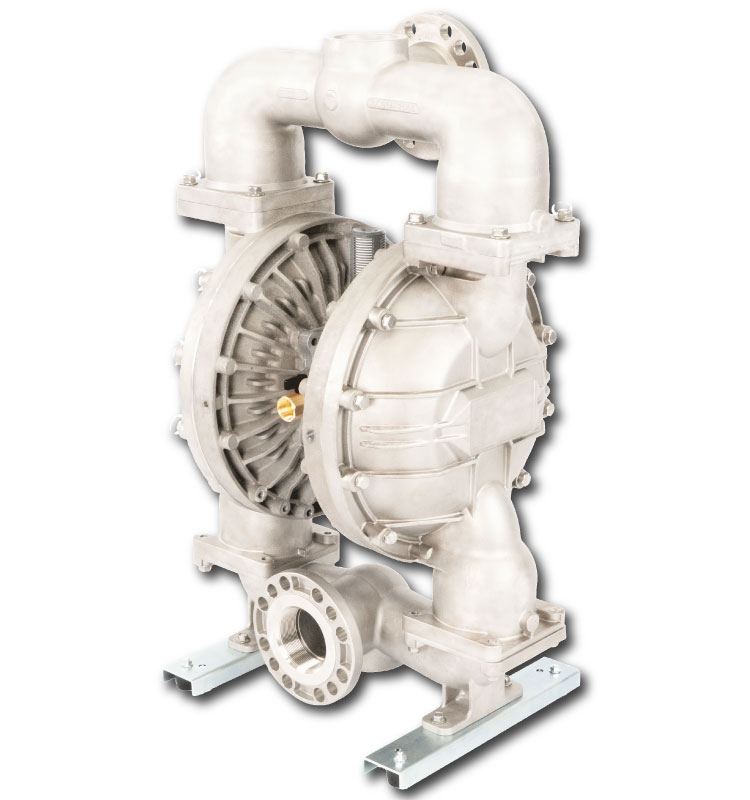

D800A-M/S-M

PUMP OPERATION MANUAL

SERVICE BOOK

Connection Type		Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)
Rc	Threaded flange	D800A□J-M (AL)	D800ACJ-M 1P00309MP	D800ANJ-M 1P00310MP	D800AEJ-M 1P00311MP	D800AVJ-M 1P00312MP	D800ATJ-M 1P00313MP	D800AHJ-M 1P00314MP	D800ASJ-M 1P00315MP
Rc	Threaded flange	D800S□J-M (SUS)	D800SCJ-M 1P00316MP	D800SNJ-M 1P00317MP	D800SEJ-M 1P00318MP	D800SVJ-M 1P00319MP	D800STJ-M 1P00320MP	D800SHJ-M 1P00321MP	D800SSJ-M 1P00322MP
NPT	Threaded flange	D800A□A-M (AL)	D800ACA-M 1P00309MN	D800ANA-M 1P00310MN	D800AEA-M 1P00311MN	D800AVA-M 1P00312MN	D800ATA-M 1P00313MN	D800AHA-M 1P00314MN	D800ASA-M 1P00315MN
NPT	Threaded flange	D800S□A-M (SUS)	D800SCA-M 1P00316MN	D800SNA-M 1P00317MN	D800SEA-M 1P00318MN	D800SVA-M 1P00319MN	D800STA-M 1P00320MN	D800SHA-M 1P00321MN	D800SSA-M 1P00322MN

DIMENSIONAL DRAWINGS

READ ME FIRST
