Industrial Pumps

Type 500 Models

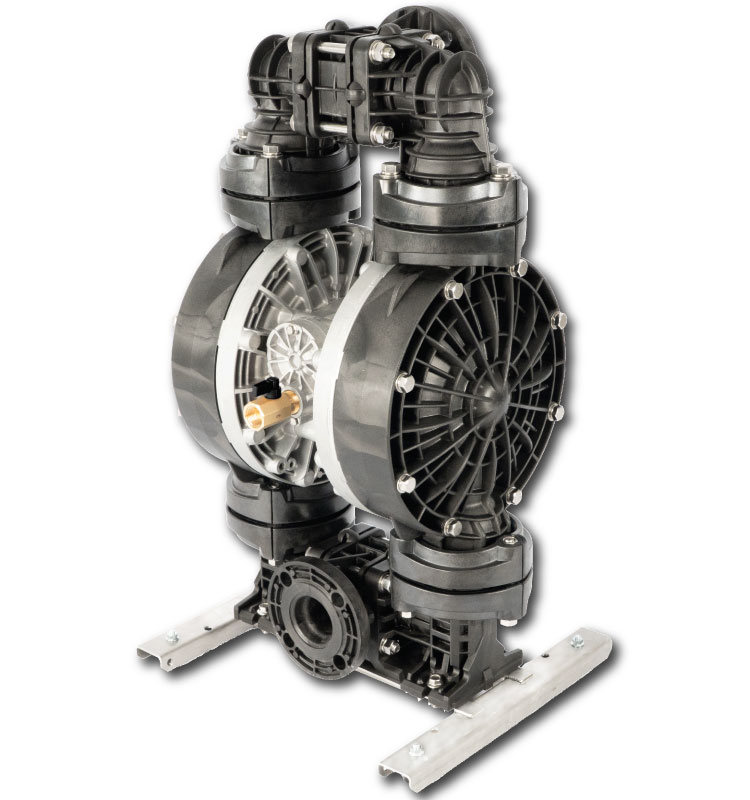

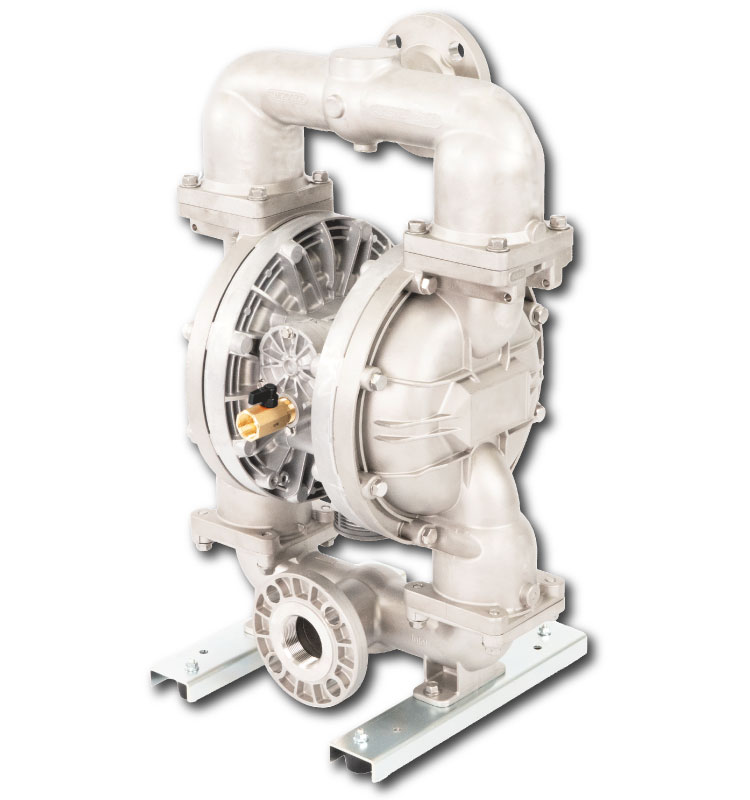

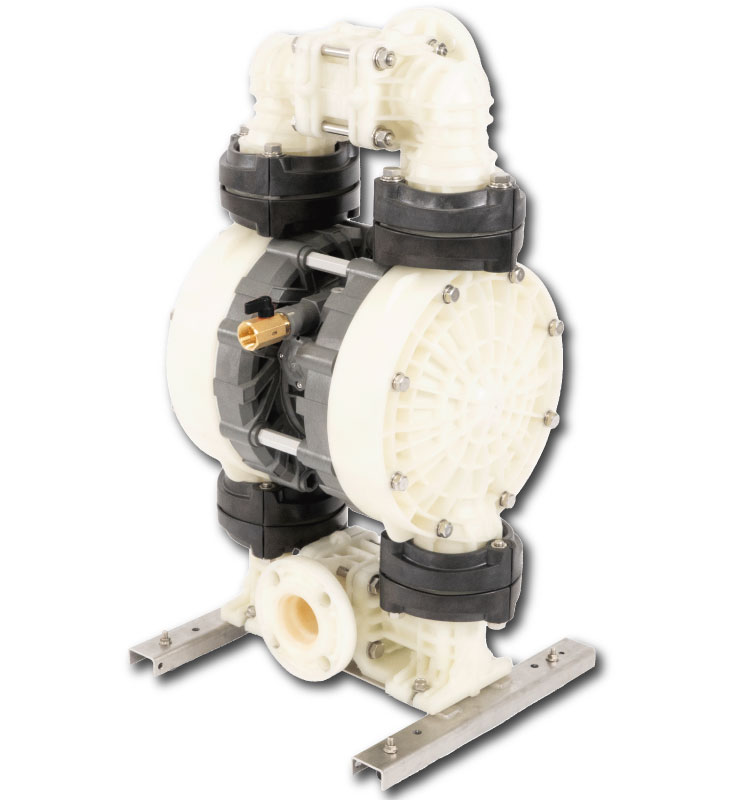

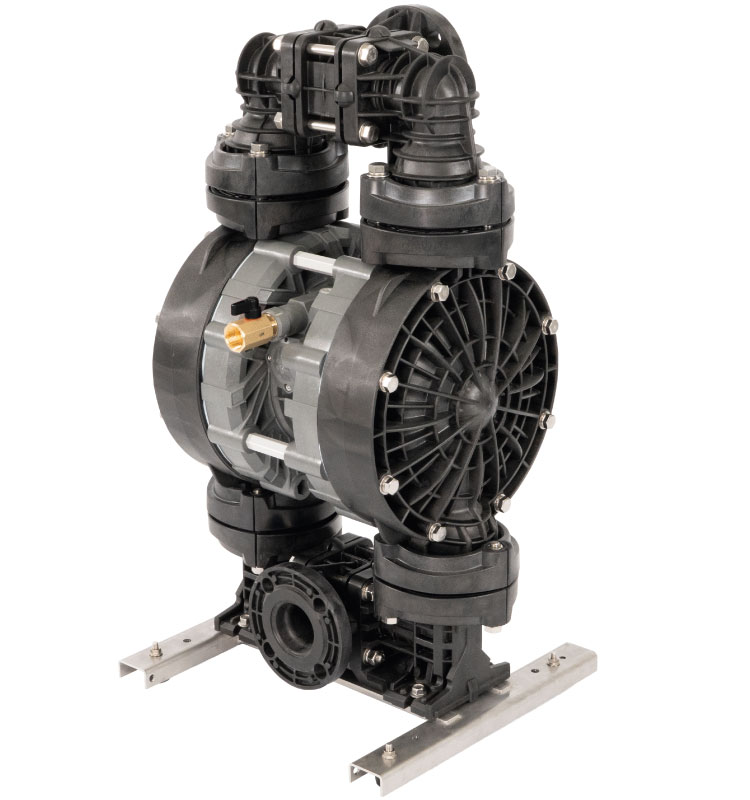

SPOOL AIR MOTOR

2″ Liquid connections Maximum 800L/min (211.4GPM)

  • 500G□J
    500G□A

  • 500V□J
    500V□A

  • 500A□J
    500A□A

  • 500S□J
    500S□A

3D viewer

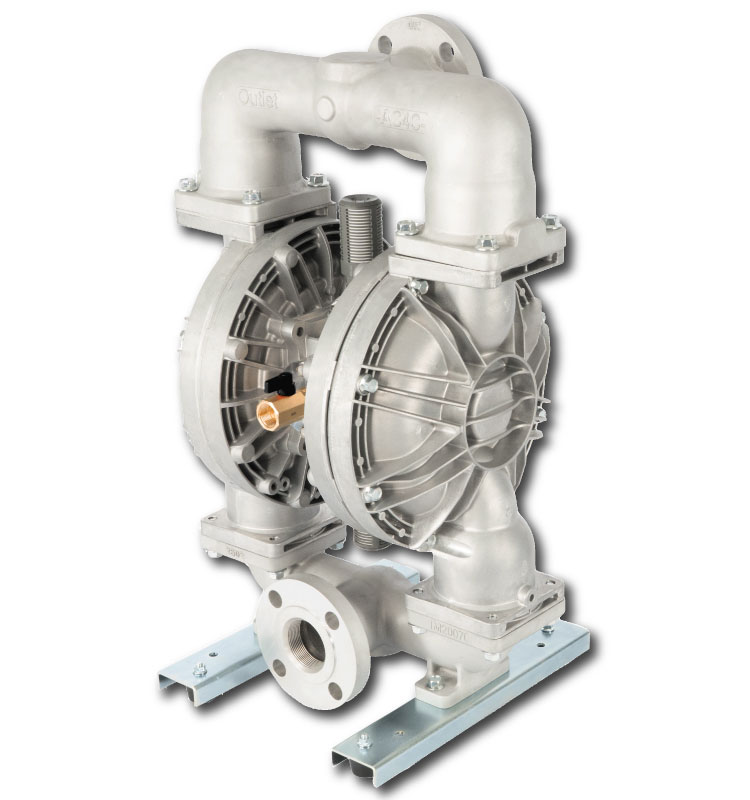

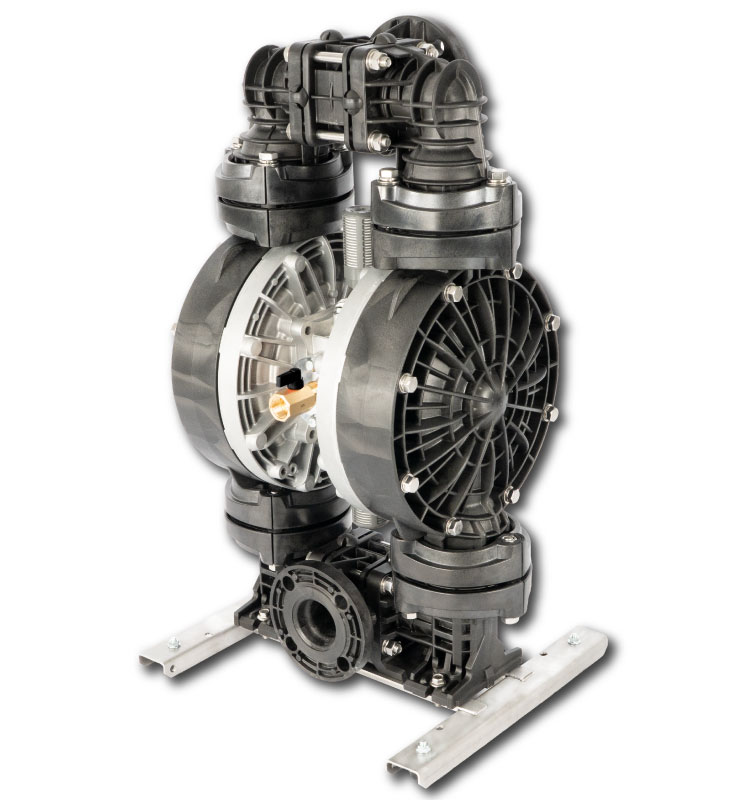

MECHANICAL AIR MOTOR (-M)

2″ Liquid connections Maximum 750L/min (198.2GPM)

  • 500G□J-M
    500G□A-M

  • 500V□J-M
    500V□A-M

  • 500A□J-M
    500A□A-M

  • 500S□J-M
    500S□A-M

3D viewer

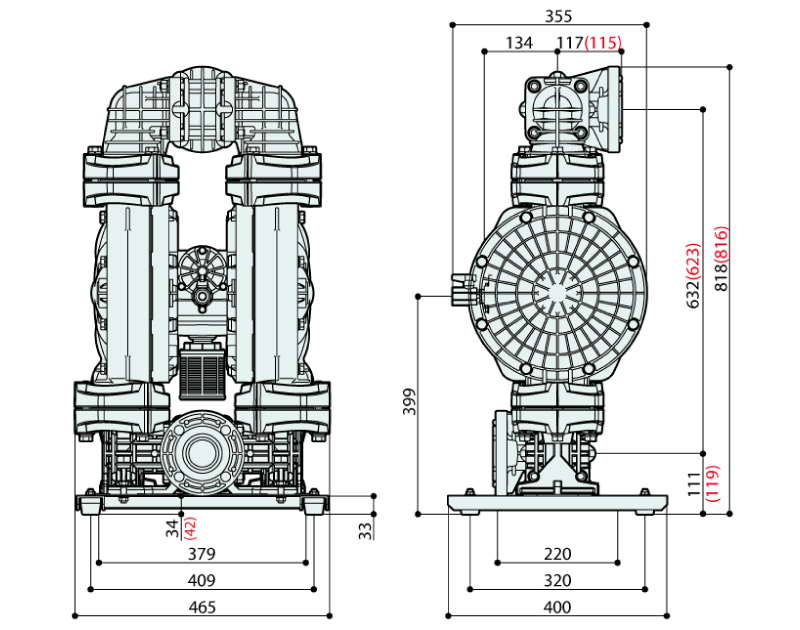

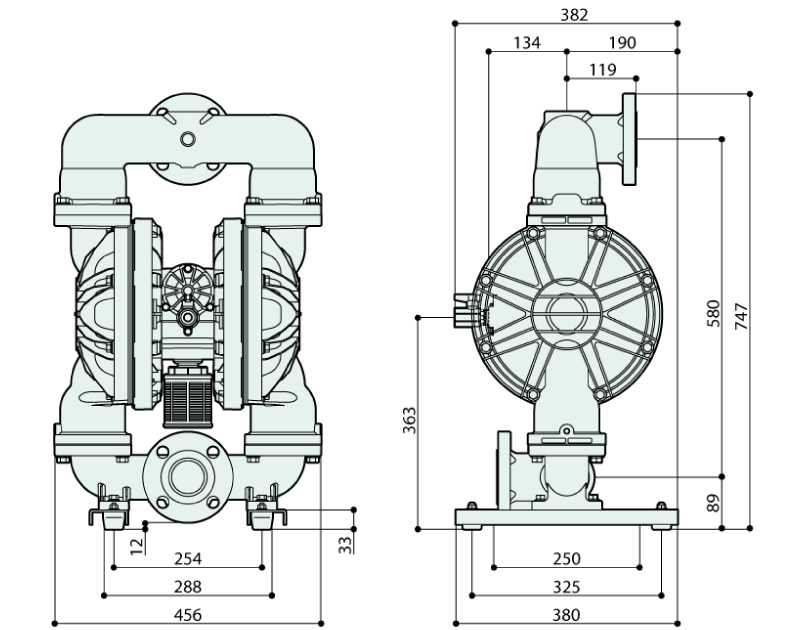

Type 500 (Spool Air Motor)
Model Name 500G□J ∙ V□J
500G□A ∙ V□A		 500GTJ･GWJ∙VTJ･VWJ
500GTA∙GWA･VTA･VWA		 500A□J ∙ S□J
500A□A ∙ S□A		 500ATJ･AWJ∙STJ･SWJ
500ATA∙AWA･STA･SWA
Max Flow Rate 650 L/min 600 L/min 800 L/min 600 L/min
Connection Type Flange Threaded Flange
Connection Size Air Supply ¾”
Air Exhaust 1″
Liquid 50A ※Center Port 2″ or 50A ※Center Port
Check Valve Type Ball
Max Solid Size 8mm or less
Supply Air Pressure Range 0.2 ~ 0.7MPa 0.2 ~ 0.85MPa 0.2 ~ 0.7MPa
Materials Wetted Body Glass Filled PP, CFPVDF (CFPP) Aluminium, SUS (Cast Iron)
Air Motor Aluminium
Diaphragm CR, NBR, EPDM, FKM, TPEE, TPO PTFE, One-piece PTFE CR, NBR, EPDM, FKM, TPEE, TPO PTFE, One-piece PTFE

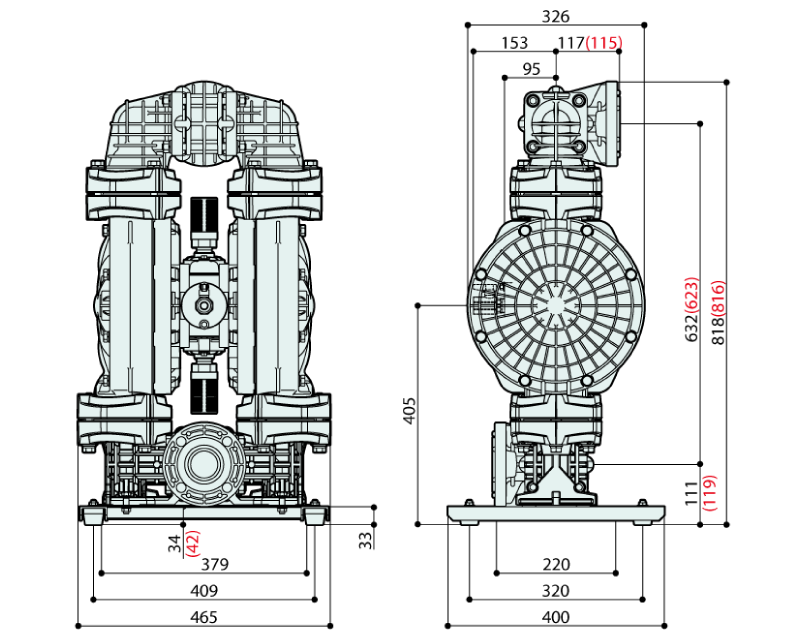

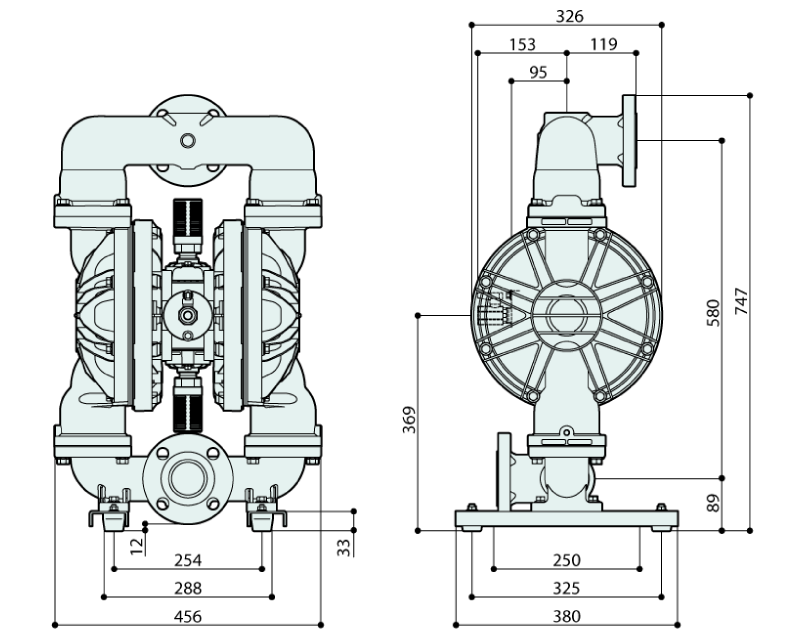

Type 500-M (Mechanical Air Motor)
Model Name 500G□J-M ∙ V□J-M
500G□A-M ∙ V□A-M		 500GTJ-M∙GWJ-M
500VTJ-M･VWJ-M
500GTA-M∙GWA-M
500VTA-M･VWA-M		 500A□J-M ∙ S□J-M
500A□A-M ∙ S□A-M		 500ATJ-M∙AWJ-M
500STJ-M･SWJ-M
500ATA-M∙AWA-M
500STA-M･SWA-M
Max Flow Rate 640 L/min 520 L/min 750 L/min 520 L/min
Connection Type Flange Threaded Flange
Connection Size Air Supply ¾”
Air Exhaust ¾” ※2 Ports
Liquid 50A ※Center Port 2″ or 50A ※Center Port
Check Valve Type Ball
Max Solid Size 8mm or less
Supply Air Pressure Range 0.1 ~ 0.7MPa 0.15 ~ 0.7MPa 0.1 ~ 0.85MPa 0.15 ~ 0.7MPa
Materials Wetted Body Glass Filled PP, CFPVDF (CFPP) Aluminium, SUS (Cast Iron)
Air Motor Aluminium
Diaphragm CR, NBR, EPDM, FKM, TPEE, TPO PTFE, One-piece PTFE CR, NBR, EPDM, FKM, TPEE, TPO PTFE, One-piece PTFE
